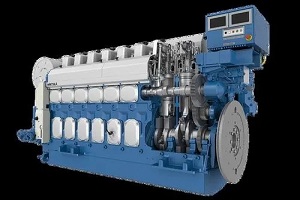

DIESEL ENGINE PARTS 6CHN40/46B

Type：6CHN40/46B

 1 Screw assy Part No.: 02.020.169.00

 2 Tapped Part No.: 602-061-222 /01.020.0071

 3 Bush Part No.: 602-061-212/02.020.0069.01

 4 Fuel rail assembly Part No.: 602-112-008 602-112-007

 5 Oil cap Part No.: 602.025.119

 6 Clamp Part No.: 602.025.011

 7 Sealing ring Part No.: 602.025.120

 8 Sealing ring Part No.: 602.025.121

 9 Gasket Part No.: 602.025.116

 10 Sealing ring Part No.: 027.033.36.2.1

 11 Sealing ring Part No.: 014.018.25.2.2

 12 Ring Part No.: 027-032-30-202

 13 Ring Part No.: 0630-01

 14 Sealing ring Part No.: 0395-01

 15 Sealing ring Part No.: 0395-02

 16 Sealing ring Part No.: 602.010.110/00.653.810.6.63

 17 Sealing ring Part No.: 029.0355.36.2.2

 18 Sealing ring Part No.: 065.070.25.2.4/00.655.064.2.63

 19 Sealing ring Part No.: 602.090.108/00652.29.53.63

 20 Gasket Part No.: 602.014.117/02.008.0011.00

 21 Sealing ring Part No.: 602.060.109/00.653.115.5.68

 22 Sealing ring Part No.: 602.060 109

 23 Exhaust valve Part No.: 602-062-001

 24 Exhaust valve Part No.: 602-062-001-01

 25 Intake valve Part No.: 606-060-001

 26 Rotocap Part No.: 602-062-015

 27 Exhaust valve seat Part No.: 602-062-014

 28 Screw Part No.: 00.020.18.045.0

 29 Cylinder cover pin Part No.: 602.014.111/02.008.0103.00&02.008.0097.00

 30 Piston skirt ( 8 pins) Part No.: 602-040-011

 31 Piston assy Part No.: 602-040-001

 32 Compression ring Part No.: 602-040-105

 33 Piston ring Part No.: 602-040-013

 34 Oilscraper ring Part No.: 602-040-014

 35 Ring&Sealing Part No.: 602-028-103/99.602.90000.2

 36 Pusher spring Part No.: 602-067-102/01.032.0043.00

 37 Shaft Part No.: 02.25.006018

 38 Injector body Part No.: 602.068.013

 39 Valve Part No.: 602-066-122

 40 Spring ring Part No.: 602-066-123

 41 Gasket Part No.: 602-066-127/02.030.0110.00

 42 Conrod bearing (STD) Part No.: 602-038-011

 43 Conrod bearing (1st repair size) Part No.: 602-038-011/1

 44 Piston pin Part No.: 602-040-121

 45 Spring ring Part No.: 0635-01/00.201.01.00.62

 46 Main bearing Part No.: 62.012.021 62.012.022

 47 Sealing Part No.: 602-014-117/02.008.0011.00

 48 Sealing ring Part No.: 602-014-131/00.653.505.6.68

 49 Sealing ring Part No.: 602-014-132/00.653.444.8.71
