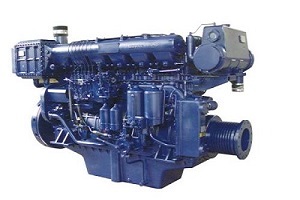

MAN B&W DIESEL ENGINE PARTS 12V 28/32A

TYPE ：12V 28/32A

 1.1 O-ring

 Plate No. 1 1610, Edition-04, Item No. A3, 191132-0

 1.2 Tightening ring, cyl.liner/cyl.head

 Plate No. 1 1610,Edition-04, Item No. A5, 1105087-0319

 1.3 Tightening ring, cyl.liner/frame

 Plate No. 1 1610,Edition-04, Item No. A4, 1105087-0306

 1.4 Flame resistance ring for cyl.liner

 Plate No. 1 1610,Edition-04, Item No. A6, 1105099-0131

 1.5 Sealing ring

 Plate No. 1 1610, Edition-04, Item No. 4, 033069-6

 1.6 Sealing ring

 Plate No. 11610, Edition-04, Item No. 7, 2001456-3

 1.7 Sealingring

 Plate No. 1 1610, Edition-04, Item No. 6, 1105199-0001

 1.8 Sealingring

 Plate No. 1 1610, Edition-04, Item No.14, N17M6125

 1.9 Sealingring

 Plate No.11610, Edition-04, Item No. 16, 704894-5

 1.10 Gasket

 PlateNo. 1 2014-01, Item No. B 28

 1.11 Sealing ring

 Plate No. 1 2816-01, Item No. C10

 1.12 Sealingring

 Plate No. 1 1616, Edition-01, Item No.A29

 1.13 Gasket

 Plate No. 1 1618, Edition-01, Item No.A4

 1.14 Gasket

 Plate No. 1 1618, Edition-01, Item No.A5

 1.15 Gasket

 Plate No. 1 1620, Edition-01, Item No.9

 1.16 Sealing ring

 Plate No. 1 1620, Edition-01, Item No.12

 1.17 Sealing ring

 Plate No. 1 1620, Edition-01, Item No.14

 1.18 Gasket

 Plate No. 1 1620, Edition-01, Item No.4

 1.19 Cylinder liner

 Plate No.1 1610-04,Item No.А1

 1.20 Connecting rod bearing shell

 Plate No.1 1612-01,Item No.14

 1.21 Sealing ring

 PlateNo. 1 1818-01, Item No.В9

 1.22 Water guide jacket 11.05103-0002

 Plate No. 1 1610-04, ItemNo. 1

 1.23 Cylinder head

 Plate No. 1 1616-01,Item No. B0

 1.24 Cooling water nipple

 Plate No. 1 1818-01, Item No.В8

 1.25 Sealing ring

 Plate No.1 1616, Edition-01, Item No.A12

 1.26 Gasket

 Plate No. 1 3016-01, Item No. 4065

 1.27 Sealing ring

 Plate No.11616, Edition-01, Item No.A9

 1.28 Spring ring for bore dia.60mm 28/32A

 Plate No. 1 1616, Edition-01, Item No.A10

 1.29 O-ring

 Plate No. 1 1616, Edition-01, Item No.A18

 1.30 Sealing ring

 Plate No. 1 1818-01,Item No.В10

 1.31 Gasket

 Plate No. 1 1818-01, Item No.В11

 1.32 Sealingring

 Plate No.1 1014, Edition-01, Item No.D5

 1.33 Sealingring

 Plate No.1 1014, Edition-01, Item No.C2

 1.34 Dial thermometer 50-650C/120-1200F

 Plate No.1 1818, Edition-01, Item No.B30

 1.35 Сirclip

 PlateNo.1 1616,Edition-01, ItemNo.E13

 1.36 Circlip

 Plate No.1 1616, Edition-01, Item No.E28

 1.37 Gasket

 Plate No.1 1616, Edition-01, Item No.A4

 1.38 Gasket

 Plate No.1 1818, Edition-01, Item No.A15

 1.39 Gasket

 Plate No. 1 1818, Edition-01, Item No.B4

 1.40 Gasketforexhaustpipe

 Plate No.1 1818, Edition-01, Item No.B6

 1.41 Gasket F.Interm.flange 12V/28/32A

 Plate No. 1 1818, Edition-01, Item No.B16

 1.42 Gasket against turbocharger

 Plate No.1 1818, Edition-01, Item No.B18

 1.43 Sealing ring

 Plate No. 1 1414-02 Item No. A24

 1.44 Pistonring

 PlateNo. 11614, Edition-13, ItemNo. C1, 113456-1242

 1.45 Pistonring

 PlateNo. 11614, Edition-13, ItemNo. C5, 113456-1242

 1.46 Piston ring

 PlateNo. 11614, Edition-13, ItemNo. C9, 0891503-2

 1.47 Oil scraper ring

 Plate No. 1 1614, Edition-13, Item No.C13, 0891502-0

 1.48 Inlet valve

 PlateNo. 11616, Edition-01, Item No. С1

 1.49 Exhaust valve

 PlateNo. 11616, Edition-01, Item No. С10

 1.50 Inlet valveseat ring

 PlateNo. 11616, Edition-01, Item No. A11B

 1.51 Exhaust valveseat ring

 PlateNo. 11616, Edition-01, Item No. A11A

 1.52 Plugscrew

 PlateNo. 1 1818-01, Edition-01, ItemNo. В12

 2 Freshwaterpump, clockwiserotationV 28/32A

 PlateNo. 1.3010-01

 2.1 Ring

 Plate No. 1 3010-01, Item 1 88177-0, No. 34

 2.2 Rotating gasket complete

 Plate No. 1 88184-6, Item No. 38

 2.3 Gasket

 Plate No.1 87694-5, Item No.37

 2.4 Ball Bearing

 Plate No.1 87694-5, Item No.33

 3 Sea water and bilge pump, clockwise rotation V 28/32A

 Plate No. 1.3210-01

 3.1 Gasket

 Plate No.1 87695-2, Item No.52

 3.2 Gasket

 Plate No.1 88173-9, Item No.44

 3.3 Gasket

 Plate No. 1 87694-5, Item No.38

 3.4 Impeller

 Plate No.1 66198-2, Item No.40

 3.5 Rotating gasket complete

 Plate No. 1 88184-6, Item No. 39

 3.6 Sealing ring

 Plate No. 188177-0, Item No. 35

 3.7 Ball Bearing

 6308, Item No. 32

 3.8 Ball Bearing

 6308, Item No. 33

 4 Air starter, clockwise rotation

 Plate No.1 2618-01

 4.1 Cylinder O-ring(4)

 Item No. 8

 4.2 Vanepacket

 Item No. 15

 4.3 Rear rotor bearing

 ItemNo. 10

 4.4 Front rotor bearing

 Item No. 18

 5 Fuel oil system

 5.1 Fuelinjectionpumpelement with pressure valve

 Plate No. 12016, Edition-02, Item No.5

 5.2 Spring for pressure valve

 Plate No. 12016, Edition-02, Item No.33

 5.3 Sealing ring

 Plate No. 12016, Edition-02, Item No.36

 5.4 Supporting ring for item 36

 Plate No. 12016, Edition-02, Item No. 37

 5.5 Sealing ring

 Plate No. 12016, Edition-02, Item No. 24

 5.6 Sealing ring

 Plate No. 12016, Edition-02, Item No. 25

 5.7 Supporting ring

 Plate No. 12016, Edition-02, Item No. 26

 5.8 Sealing ring

 Plate No. 12016, Edition-02, Item No. 38

 5.9 Top cover

 Plate No. 12016, Edition-02, Item No. 35

 5.10 Roller guide for valves and F. ING. PUMP.

 Plate No.1 1414-02, Item No.B7, Roller complete

 5.10 Plate No.1 1414-02 Item No.E11 Roller complete

 6 Nozzle

 6.1 Sealing ring

 Plate No. 12018, Edition-02, Item No. 11

 6.2 Sealing ring

 Plate No. 12018, Edition-02, Item No. 12

 6.3 Sealing ring

 Plate No. 12018, Edition-02, Item No. 13

 6.4 Sealingring

 PlateNo.1 2020-01, ItemNo.27

 6.5 Rotary packing

 Plate No. 1 2012-01, Item № 9

 6.6 Oil sealing ring

 PlateNo. 1 2012-01, Item No.25

 6.7 Nozzle fuelv 10×0.39×148

 Plate No. 12018, Edition-02, Item No. A3

 7 Turbocharger

 7.1 Bearing bush

 No. 517.002

 7.2 Gasket

 No. 517.031

 7.3 Labyrinthring

 No. 520.006

 7.4 Plain Bearing

 No.517.003
